Description

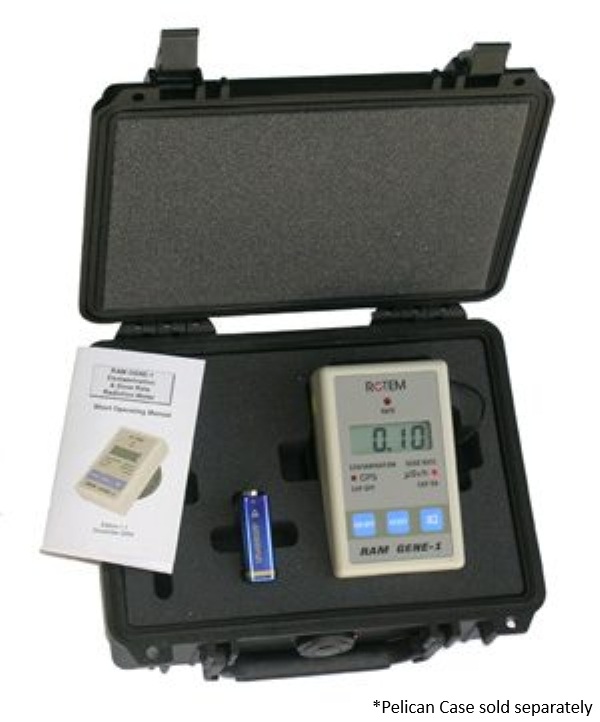

The RAM GENE-1 meter mark II, designed for work in extreme conditions, features a ruggedized casing and backlight.
This versatile instrument is a combined dose rate and contamination meter designed to be used with one hand.
The RAM GENE-1 features a ruggedized casing and contains a specially designed energy filter embedded in the cap for dose rate radiation monitoring H*(10), with the additional flexibility of a contamination meter. It’s based om a GM pancake detector using a thin mica window protected by a stainless-steel screen. The transition between dose rate and contamination is achieved by simply removing or placing the plastic cap.
FEATURES
- Large, four digit, continuous ranging, LCD display
- Simple, three key operation
- Large 1.75″ pancake GM detector
- Suitable for alpha, beta or gamma contamination detection
- Unit readouts of count rate (CPS in contamination mode and (µSv/hr) in dose mode.
- Audible and visual (LED) count rate indication
- Smart software provides fast, yet stable response
- Dead time correction
- Alarms for overflow, low battery and detector failure
- Automatic self diagnostic routines
- Durable case with splash resistant keypad
TECHNICAL INFORMATION
- Detectors: 1.75” Pancake GM tube. End window 1.5 – 2.0 mg/cm2 protected by stainless steel mesh
- Units: cps, cpm and µSv/h
- Range: 0.05 µSv/h to 7 mSv/h
- 0-42 000 cps
- Energy range: Measure alpha >2 MeV, beta > 100 keV, gamma and x-rays from 5 keV to 1,3 MeV.
- Temperatures: Operating temperature -10°C to +50°C
- Protection class: not available
- Response time/Sensitivity: 5.8 cps/µSv/h
- Weight and dimension: 110 x 67 x 74 mm. Weight 560 g
- Battery life: 9V battery. Typically > 50 h
- Nuclide library: No
NEW: Now available with an external power plug which can also be used to charge compatible batteries
